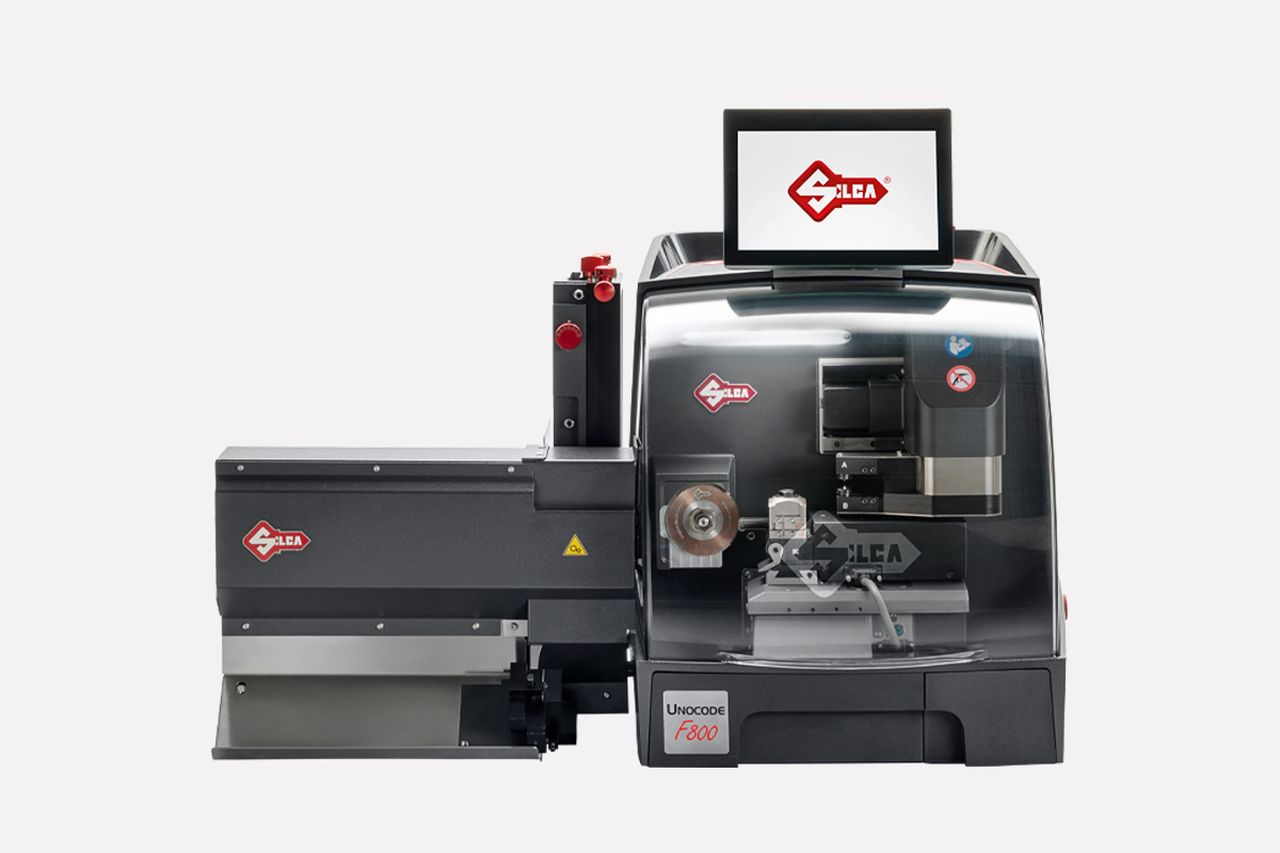

Unocode F800
Make Every Minute Count With Silca’S Unique Unocode F800.
Designed for specialist locksmiths, Silca’s latest electronic key cutting machine automates and simplifies the complete key duplication process to improve the speed and quality of service to your customer. Faster key duplication means significantly improved returns on each key sold for you.
Product Details
Technical Data
Electricity supply : 100-240V - 50/60Hz
Cutter motor : 48VDC
Engraving motor : 24VDC
Key cutter : Prismatic in coated hard metal (widia)
Engraving cutters : Upper cutter ‘A’ in coated hard metal (widia), Lower cutter ‘B’ in hard metal
Tool speed : Prismatic cutter: 1070 rpm, Engraving cutters: 14500 rpm
Movements : On 2 axes with ball screws activated by step motors on ground roller runners. Rotating axis available with optional clamp
V4 clamp : With 4 standard sides for gripping keys with different thicknesses < 2.7: for thicknesses 1 mm to 2.7 mm, > 2.5: for thicknesses 2.5 mm to 4 mm
Runs : With clamp: axis: 30 mm, Y axis: 72 mm, Keys with head stop: Y axis: max. 45 mm (by code) and Y axis: max. 42 mm (with feeder), Keys with tip stop: Y axis: max. 45 mm (by code)
Max dimensions : Width: 921 mm - Depth: 740 mm - Height: 680 mm
Weight : Without feeder: 61.2 Kg - With feeder: 87.2 Kg
Functionality
The exclusive Unocode F800 is the truly all-in-one solution for duplicating by code flat keys, automating the key feeding, engraving, cutting and sorting leaving you free to manage your next customer.
